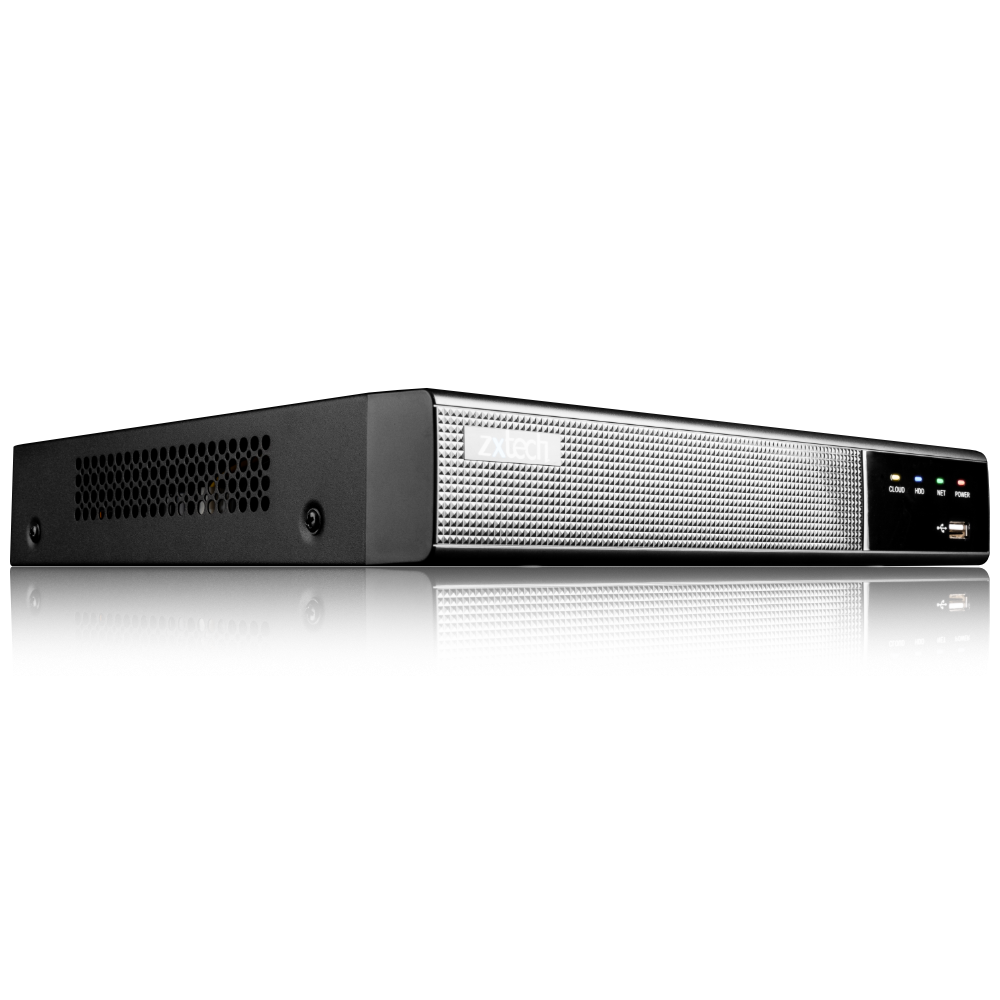

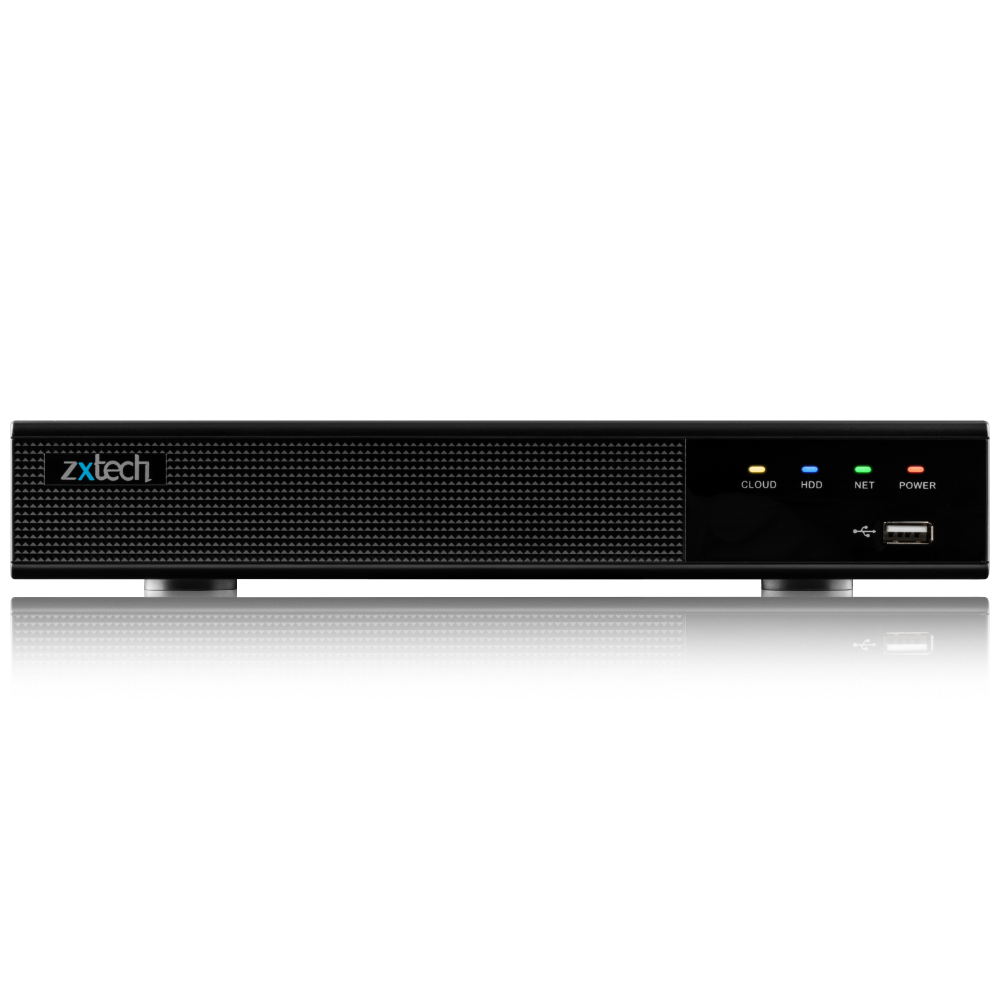

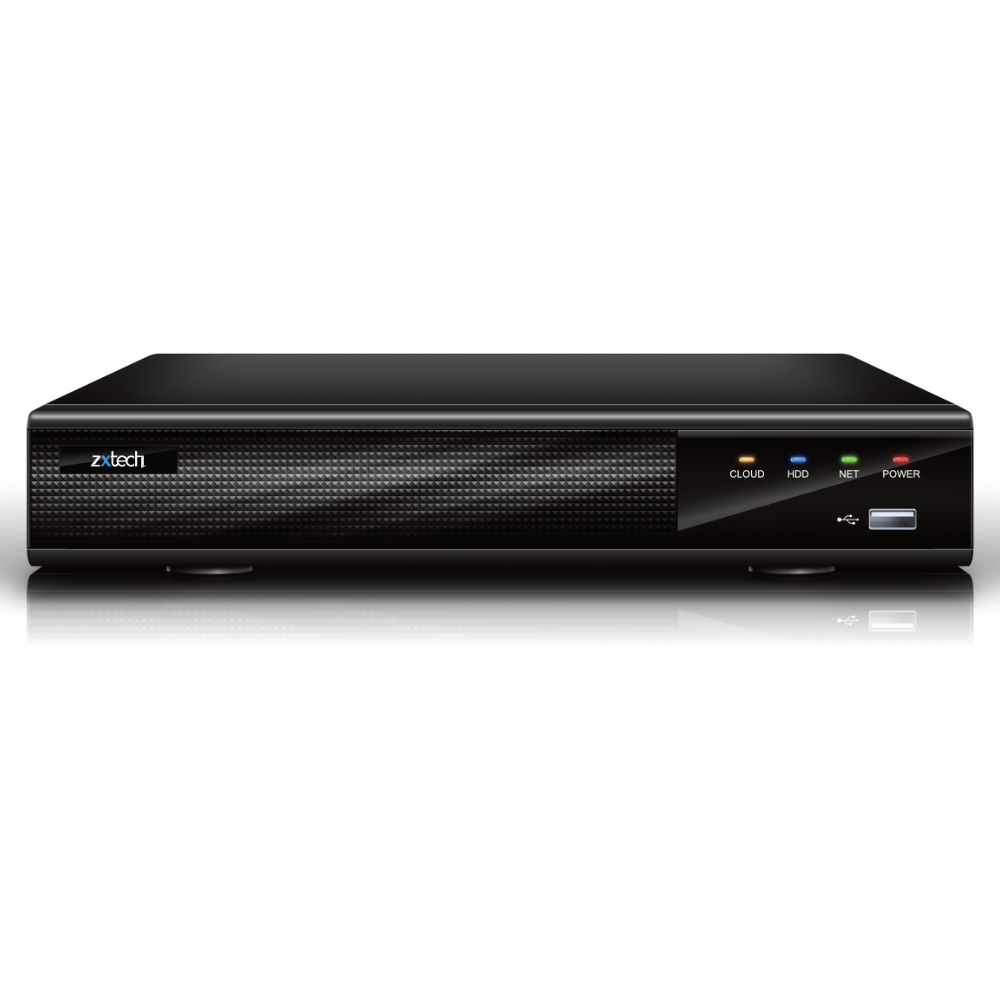

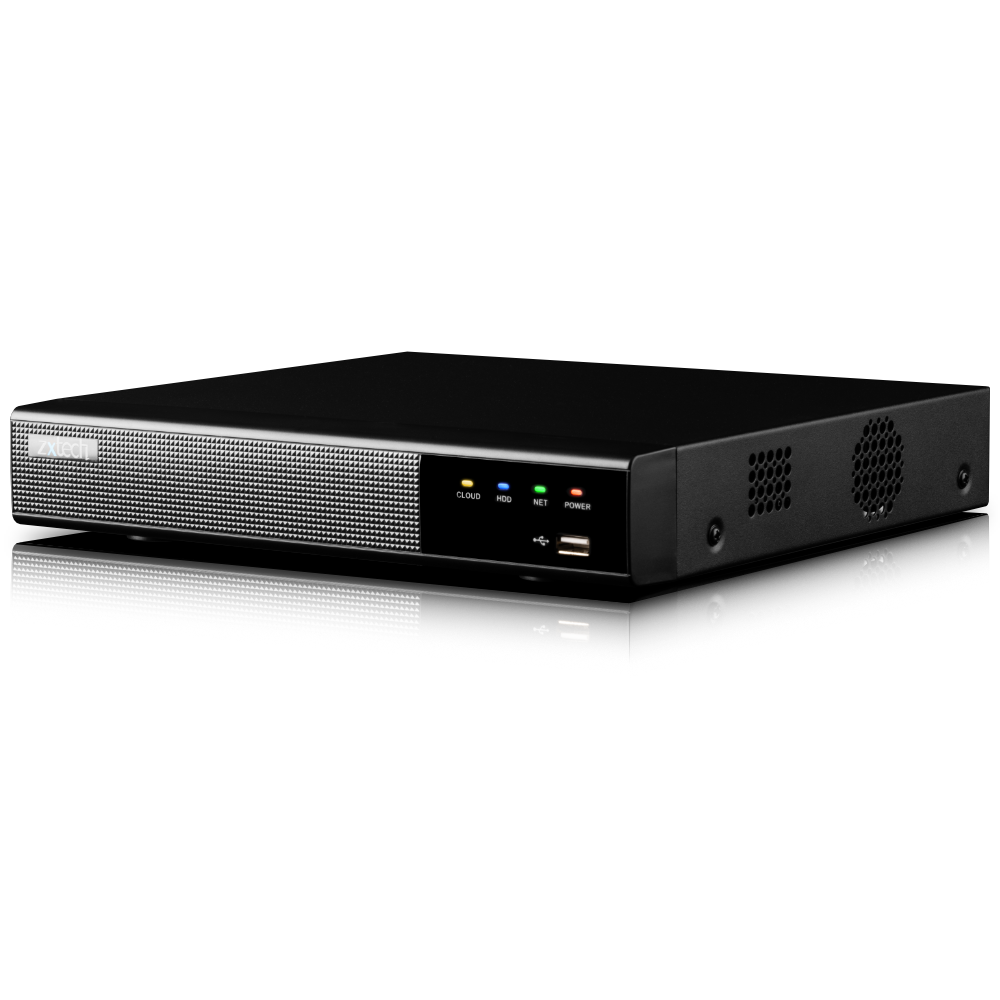

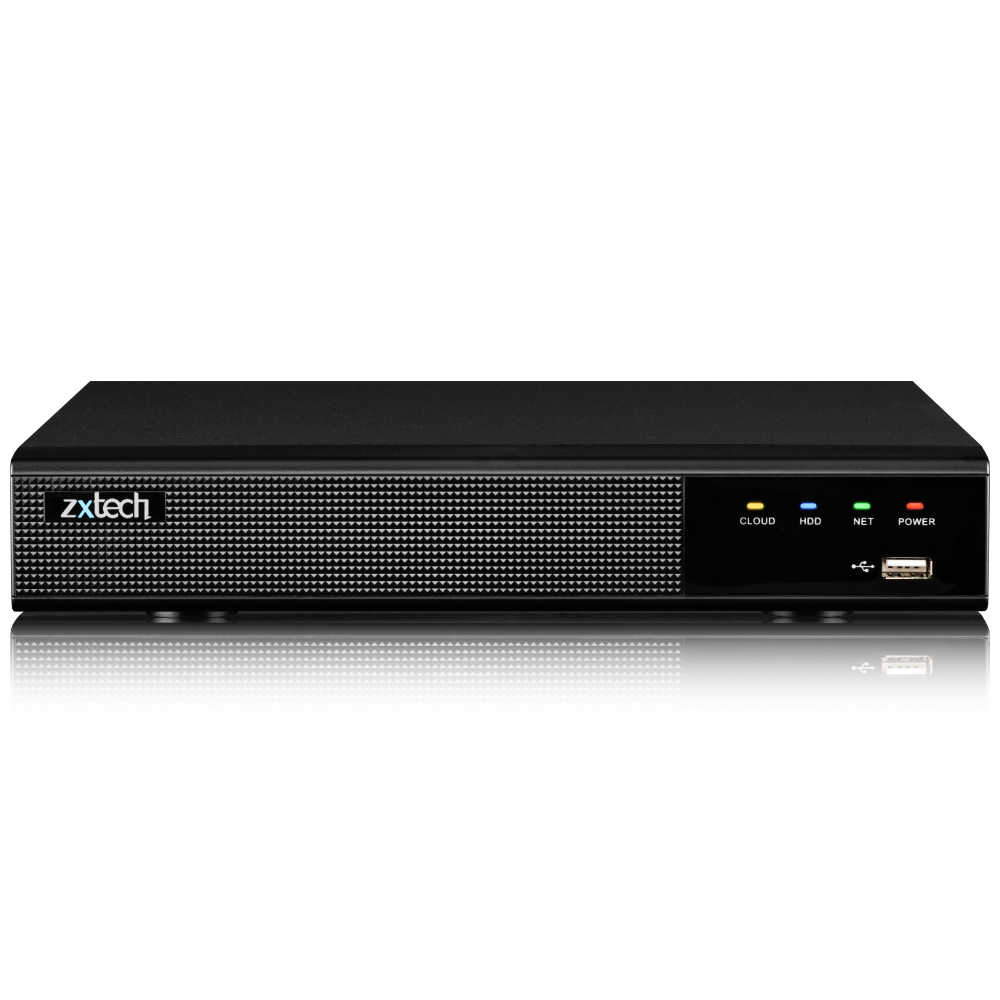

Zxtech Onyx 9 Channel 4-PoE Ports 8MP 4K CCTV High Definition Network Recorder
- UK next business day delivery
- UK VAT invoices included
- 30 days hassle free returns
- 12 month warranty
- In stock, ready to ship
Elevate your security setup with Zxtech's 9-channel NVR, optimally designed with 4 built-in PoE ports. Capable of supporting 9 IP cameras using an external switch, this NVR delivers an 8-megapixel resolution. With up to 8TB hard drive compatibility and easy remote access via smartphones, stay updated and get instant email alerts for intrusions.
Key Features:
- Channels: Supports up to 8x 4K (9x 5MP) cameras with 4 built-in PoE ports.
- Recording: Crisp resolution ranging from 720p to 4K/8MP 25/30fps.
- Compression: Optimal storage with H.265+/H.265/H.264+/H.264 methods.
- Connectivity: Cloud access across various devices and browsers.
- Storage: Space for one hard drive, up to 8TB.
- Configurations: Flexible scheduling, masking, and selective USB backup options.
- Event Triggers: Incorporates recording, email, FTP, snapshot, and buzzer.
- Smart Features: Face detection, regional intrusion & line crossing detection.
- Additional Ports: Features audio in & out, alarm ports, 2x USB, and network ports.
- Compatibility: Adheres to Onvif 2.4 standards.
- Warranty: Enjoy a 1-year peace of mind guarantee.
What's in the Box
- Zxtech Onyx 16CH (8-PoE) CCTV NVR
- Quick Start Guide
- USB Mouse
- 52V?48V Power Adaptor
![Zxtech Onyx 9 Channel 4-PoE Ports 8MP 4K CCTV High Definition Network Recorder](http://domarcctv.co.uk/cdn/shop/products/mn403pn-main.png?v=1666866364&width=1000)
Compare
Onyx Range NVR Range
![Zxtech Onyx 9 Channel 4-PoE Ports 8MP 4K CCTV High Definition Network Recorder](http://domarcctv.co.uk/cdn/shop/products/mn403pn-main.png?v=1666866364&width=1000)
![Zxtech Onyx 16 Channel 8-PoE Ports 8MP 4K CCTV High Definition Network Recorder](http://domarcctv.co.uk/cdn/shop/products/mn903pn-main.png?v=1666867289&width=1000)
![Zxtech Onyx 32 Channel 16-PoE Ports 12MP 4K CCTV High Definition Network Recorder](http://domarcctv.co.uk/cdn/shop/files/mn6p3c2h-main.png?v=1711540995&width=1000)
8 x 4K Cameras
9 x 5MP Cameras
10 x 4K Cameras
16 x 5MP Cameras
32 x 4K or 12MP Cameras
32 x 5MP Cameras
4
8
16
9
16
32
5MP, 8MP
5MP, 8MP
5MP, 8MP, 12MP
1x
1x
2x
8TB
8TB
20TB (10TB+10TB)
Enhanced by High End CPU
4K PoE NVR Features
![](http://domarcctv.co.uk/cdn/shop/files/preview_images/mobile.jpg?v=1697528851&width=600)
Free App
Stream Live, Receive Real-time Alerts, Snap & Share, and Playback Anytime, Any Where, and Control Zoom
Using the free app, stream live in 4K, receive real-time alerts, snap, share, and playback from anywhere. Select channels and times for instant playback, and view multiple cameras simultaneously. For the best view, simply rotate your phone to widescreen. You can also zoom in and zoom out using the app if connected with PTZ cameras.
![](http://domarcctv.co.uk/cdn/shop/files/live-4_ed8dc3d3-9f6d-4ee1-b9c4-f72a3140d166.jpg?v=1697125327&width=1400)
Watch Live Stream
From Zxtech 4K CCTV Camera
Ensure your internet speed is optimal and wait a bit longer for the 4K high-quality stream to fully load on your device. YouTube takes a while to buffer the highest quality image.
8MP
Shaper than 1080p
4K Recording
75%
Space Saving
With H.265+
Redefining Clarity
2MP v.s. 5MP & 4K
Transition from the standard 2MP 1080p HD to the finer details of 5MP Super HD or 8MP Ultra HD when connected to 5MP or 8MP IP Cameras. For those seeking the pinnacle of clarity, our 4K NVR is the ultimate choice for your Zxtech cameras.
![](http://domarcctv.co.uk/cdn/shop/files/hd-1_b1ebdf6f-b254-4c5d-9db1-a297a6dd4c27.jpg?v=1696961195&width=1000)
2 Megapixel
![](http://domarcctv.co.uk/cdn/shop/files/hd-2_61ac6669-212f-4b2e-b9cc-e8c7b77975e2.jpg?v=1696961229&width=1000)
4K
![](http://domarcctv.co.uk/cdn/shop/files/4ch-poe_2x_cd931856-71e6-453c-a10d-fe58ab14cb50.png?v=1697017864&width=800)
Install Your Camera with Just One Cable
Built-in PoE
Come with the choice of 4, 8 and 16 PoE Port NVR. If you already have Zxtech PoE Cameras or plan to purchase them to use with this NVR, you can bid farewell to messy cables and complex installations. Our Power over Ethernet system lets you transmit both video and power using a single network cable. By eliminating the need for separate power adapters and splitters, you benefit from a streamlined installation process that is both time-saving and cost-effective.
Enhanced by AI Technology
4K NVR Recorder Motion Features
![](http://domarcctv.co.uk/cdn/shop/files/ai-2m_1711d293-686c-49d4-9163-133047be37e0.jpg?v=1696438698&width=600)
![](http://domarcctv.co.uk/cdn/shop/files/ai-3m_32f5a3f5-673f-47bc-9ea0-954edb0b737c.jpg?v=1696438718&width=800)
![](http://domarcctv.co.uk/cdn/shop/files/ai-1m_1f74133b-d9e4-418a-89c6-8d4f84a13cdb.jpg?v=1696438732&width=800)
Must be used with Zxtech Cameras
Introducing Zxtech's advanced PoE NVR, equipped with cutting-edge AI face detection capabilities. Beyond the standard features like Motion Detection, Mobile Alerts, Masking, and Scheduling, Ensure unparalleled safety by receiving alerts or activating recordings when someone enters or crosses a predefined zone. With Zxtech, experience next-generation CCTV that proactively aids in crime prevention. Elevate your security with the future of surveillance technology. Features only available when connected to Zxtech cameras.
![](http://domarcctv.co.uk/cdn/shop/files/nvr.jpg?v=1697018971&width=1000)
![](http://domarcctv.co.uk/cdn/shop/files/nvr.jpg?v=1697018971&width=1000)
Network Connection
Connect your home router or switch to get online. If you want to connect external cameras, you will need to connect this port to a external switch or router.
- 4-Port PoE NVR can connect 9 cameras in total.
- 8-Port PoE NVR can connect 16 cameras in total.
- 16-Port PoE NVR can connect 32 cameras in total.
HDMI + VGA
You can connect up to 2 displays or monitors at the same time.
2x USB
The NVR has a USB port on the front and another on the back, allowing for easy connection of a mouse or memory stick to seamless extract CCTV footage from the hard drive.
Audio Out & Audio In
Connect external speakers to playback sound if the camera supports audio recording. Also you can connect external microphone to the recorder.
PoE Ports
- Kits with 4 or less cameras comes with 4 PoE Ports NVR.
- Kits with 8 or less cameras comes with 8 PoE Ports NVR.
- Kits with more than 9 cameras comes with 16 PoE Ports NVR.
![](http://domarcctv.co.uk/cdn/shop/files/hdd-days.jpg?v=1696407038&width=1000)
With Loop Recording
Maximized HDD for "Marathon" Recording.
The advanced PoE CCTV NVR provides an impressive storage capacity: up to 8TB in the 4/8 Port PoE NVR and 20TB in the 16 Port PoE NVR. Combined with H265+ compression technology, your recordings will use far less storage space, allowing the hard drive to accommodate up to 4 times more footage compared to the older H264 format. Additionally, the automatic loop recording ensures the oldest clips are overwritten, so you always retain the most critical evidence.
Explore HDD![](http://domarcctv.co.uk/cdn/shop/files/hdd_2x_683ba9b7-22ea-4368-bdf5-1d15e810b5fd.jpg?v=1697140774&width=800)
Boosted Efficiency, Reduced Bandwidth
Embrace the Future with H.265+
Meet H.265+, the advanced successor to H.264. This High-Efficiency Video Coding (HEVC) standard offers a significant upgrade in video quality while simultaneously slashing required bandwidth and storage needs by as much as 50%. Whether you're a homeowner or a business, this means impressive cost reductions. With the same storage capacity, H.265+ allows you to house up to 4 times the footage you'd get with H.264. Opt for H.265+ and experience the next generation of video compression, marrying cost-efficiency with impeccable clarity.
PoE NVR Enhanced by the Latest Technology
4K NVR System Features
Zxtech introduces its state-of-the-art firmware for 4K NVR CCTV. When connected to Zxtech cameras, it boasts a user-friendly interface enriched with advanced features such as Face Recognition and Intrusion Detection. This next-gen firmware ensures a superior user experience. With its smart AI system and real-time HDD monitoring, it offers both safety and reliability. Dive into a seamless experience with Zxtech's latest 4K NVR software recorders.
Mac, PC, Smart Phone, TV
Access on Any Device, Any Time
![](http://domarcctv.co.uk/cdn/shop/files/computer-view.jpg?v=1696435852&width=1000)
PC, Mac
Download the latest version of the iVMS software for your PC or Mac. This allows you to remotely monitor and review footage from your CCTV system, ensuring you stay connected wherever you are, anytime you need.
![](http://domarcctv.co.uk/cdn/shop/files/tv-view.jpg?v=1696437945&width=1000)
2 Screen TV Setup
The NVR included with the system boasts both HDMI and VGA ports on the back, enabling simultaneous connection to two external monitors or TVs. For instance, with a sufficiently long cable, you can have one display in the kitchen and another in the living room.
![](http://domarcctv.co.uk/cdn/shop/files/replay.jpg?v=1696346498&width=1000)
Smart Phone
In today's world, smartphones are indispensable, and so should your CCTV system be. Download the latest BitVision app to monitor, view, playback, and share your CCTV footage anytime, anywhere.
NVR Spec Comparison
4-PoE NVR Spec
Model | MN403PN |
System | |
Main Processor | ARM Cortex A7 Processor |
Operating System | Embedded LINUX |
Video | |
Input | 9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) |
Output | 1 VGA, 1 HD |
Audio | |
Input | 1 Port RCA, support 9CH IPC audio input |
Output | 1 Port RCA(Linear, 1kΩ), HD output |
Audio Bit Rate | 64kbps |
Audio Compression standard | G711u, G711a, ADPCM_DVI4 |
Intercom | support (two-way) |
Alarm | |
Sensor Input | 4CH |
Output | 1CH |
Motion Detection | 9 Channel, MD Zones: 396 (22 × 18) |
Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
Display | |
HD Output1 | 4K(3840*2160)/2K(2560*1440)/1920*1080/1280*1024/1280*720/1024*768 |
HD Output2 | N/A |
VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Display Split | 9CH/8CH/6CH/4CH/1CH |
Digital Zoom | YES |
OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
Recording | |
Video Compression | H265/H264/H265+/H264+ |
Resolution | 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480) |
Record Rate | PAL :4K@8CHx25fps,5MP@9CH×25fp,4MP@9CHx25fp,3MP@9CH×25fp,1080P@9CH×25fp, 960P@9CH×25fp,720P@9CH×25fp, D1@9CH×25fp NTSC: 4K@8CHx30fps,5MP@9CH×30fp,4MP@9CH×30fp,3MP@9CH×30fp,1080P@9CH×30fp, 960P@9CH×30fp, 720P@9CH×30fp, D1@9CH×30fp |
Record Mode | Manual\Timer\Motion Detection\ Alarm\Smart Event |
Playback & Backup | |
Local Sync Playback | 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps,6CH 960P@30fps, 8CH 720P@30fps,9CH D1@30fps |
Decode Capability | 4CH 1080P(1920x1080)@30fps |
Remote Sync Playback | YES |
Search Mode | ALL, Timing Video, Motion Detection, Alarm,Tag search,Smart Event,Pictrue,Log |
Playback Functions | Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
Backup Mode | USB Device/Network |
Network | |
Interface | 1xRJ45 10M/100MAdaptive Ethernet Interface |
Incoming Bandwidth | 80Mbps |
Outgoing Bandwidth | 80Mbps |
Network Functions | IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE |
Onvif | Profile S, Profile G, Profile T |
Web Browser | Edge,IE8-11, Google Chrome , Firefox ,Safari |
CMS Software | Support Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS |
Cloud Support | Yes |
Smart Phone | iPhone, iPad, Android, Android Pad |
POE | 4 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 50W, Support Plug and Play, Support network cable extended mode Max. 200M |
WIFI | N/A |
Storage | |
Interface Type | 1 SATA Hard Disk Interface (3.5" SATA) |
Capacity | Up to 8TB capacity |
eSATA | N/A |
General | |
Language UI | Simplified Chinese, Traditional Chinese,English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Janpanese,Ukrainian, Polski,Dutch, Greek, Czech, Arabic |
USB Interface | 2 USB 2.0 Interfaces |
RS485 | N/A |
Power consumption | DC48V∕1360mA ≤10W (Without Hard Disk and POE) |
Working Environment | -10℃~50℃, 10%~90%(humidity) |
Dimension(W×D×H) | 260*230*43(mm) |
Weight | 2kg(without HDD) |
8-PoE NVR Spec
Model | MN903PN |
System | |
Main Processor | ARM Cortex A7 Processor |
Operating System | Embedded LINUX |
Video | |
Input | 16CH(3840 × 2160, 2592 × 1944, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, etc) |
Output | 1 VGA, 1 HD |
Audio | |
Input | 1 Port RCA, support 16CH IPC audio input |
Output | 1 Port RCA (Linear, 1kΩ), HD output |
Audio Bit Rate | 64kbps |
Audio Compression standard | G711u, G711a, ADPCM_DVI4 |
Intercom | support (two-way) |
Alarm | |
Sensor Input | 4CH |
Output | 1CH |
Motion Detection | 16Channel, MD Zones: 396 (22 × 18) |
Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
Display | |
HD Output1 | 4K(3840 × 2160), 2K(2560 × 1440), 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 |
HD Output2 | N/A |
VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Display Split | 16CH, 13CH, 10CH, 9CH, 8CH, 6CH, 4CH, 1CH |
Digital Zoom | YES |
OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
Recording | |
Video Compression | H265/H264/H265+/H264+ |
Resolution | 4K(3840 × 2160), 5MP(2592 × 1944), 4MP(2688 × 1520 / 2560 × 1440),3MP(2048 × 1536),1080P(1920 × 1080),960P(1280 × 960),720P(1280 × 720), D1 (720 × 576/720 × 480) |
Record Rate | PAL: 4K@10CH
× 25fps,5MP@16CH
× 25fp, 4MP@16CH
× 25fp, 3MP@16CH
× 25fp, 1080P@16CH
× 25fp, 960P@16CH
× 25fp, 720P@16CH
× 25fp, D1@16CH
× 25fp NTSC: 4K@10CH × 30fps, 5MP@16CH × 30fp, 4MP@16CH × 30fp,3MP@16CH × 30fp, 1080P@16CH × 30fp, 960P@16CH × 30fp, 720P@16CH × 30fp, D1@16CH × 30fp |
Record Mode | Manual, Timer, Motion Detection, Alarm, Smart Event |
Playback & Backup | |
Local Sync Playback | 1CH 4K@30fps, 1CH 5MP@30fps, 2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,16CH D1@30fps |
Decode Capability | 4CH 1080P(1920 × 1080)@30fps |
Remote Sync Playback | YES |
Search Mode | ALL, Timing Video, Motion Detection, Alarm,Tag search, Smart Event, Pictrue, Log |
Playback Functions | Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
Backup Mode | USB Device, Network |
Network | |
Interface | 1xRJ45 10M/100/1000M Adaptive Ethernet Interface |
Incoming Bandwidth | 120Mbps |
Outgoing Bandwidth | 120Mbps |
Network Functions | IPv6,TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPOE |
Onvif | Profile S, Profile G, Profile T |
Web Browser | Edge,IE8-11, Google Chrome, Firefox, Safari |
CMS Software | Support Windows 7, Windows 8, Windows 10, Windows 11, MAC OS |
Cloud Support | Yes |
Smart Phone | iPhone, iPad, Android, Android Pad |
POE | 8 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 96W, Support Plug and Play, Support network cable extended mode Max. 200M |
WIFI | N/A |
Storage | |
Interface Type | 1 SATA Hard Disk Interface (3.5" SATA) |
Capacity | Up to 8TB capacity |
eSATA | N/A |
General | |
Language UI | Simplified Chinese, Traditional Chinese,English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Japanese, Ukrainian, Polski, Dutch, Greek, Czech, Arabic |
USB Interface | 2 USB 2.0 Interfaces |
RS485 | N/A |
Power consumption | DC48V∕2500mA ≤ 10W(Without Hard Disk and POE) |
Working Environment | -10℃~50℃, 10%~90%(humidity) |
Dimension(W×D×H) | 260 × 230 × 43(mm) |
Weight | 2kg(without HDD) |
16-PoE NVR Spec
Model | MN6P3C2H |
System | |
Main Processor | Quad Cortex A53 |
Operating System | Embedded LINUX |
Video | |
Input |
32CH(4000*3000, 3840*2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) |
Output | 1*HD,1*VGA |
Audio | |
Input | 1 Port RCA, support 32CH IPC audio input |
Output | 1 Port RCA(Linear, 1kΩ), HD output |
Audio Bit Rate | 64kbps |
Audio Compression standard | G711U, G711A, AAC |
Intercom | support (two-way) |
Alarm | |
Sensor Input | 4CH |
Output | 1CH |
Motion Detection | 32Channel, MD Zones: 396 (22 × 18) |
Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
Display | |
HD Output1 | 4K(3840*2160), 2K(2560*1440), 1920*1080, 1280*1024, 1280*720, 1024*768 |
HD Output2 | N/A |
VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Display Split | 36CH, 25CH, 17CH, 16CH, 13CH, 10CH, 9CH ,8CH, 6CH, 4CH, 1CH |
Digital Zoom | YES |
OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
Recording | |
Video Compression | H265/H264/H265+/H264+ |
Resolution | 12MP(4000*3000), 8MP(3840×2160), 5MP(2592×1944), 4MP(2688×1520/2560×1440), 3MP(2048×1536), 1080P(1920×1080), 960P(1280x960), 720P(1280×720), D1 (720×576/720×480) |
Record Rate | PAL: 12MP@32CHx25fps, 8MP@32CHx25fps, 5MP@32CH×25fp, 4MP@32CHx25fp, 3MP@32CH×25fp,1080P@32CH×25fp, 960P@32CH×25fp, 720P@32CH×25fp, D1@32CH×25fp NTSC: 12MP@32CHx30fps, 8MP@32CHx30fps, 5MP@32×30fp, 4MP@32CH×30fp, 3MP@32CH×30fp, 1080P@32CH×30fp, 960P@32CH×30fp, 720P@32CH×30fp, D1@32CH×30fp |
Record Mode | Manual, Timer, Motion Detection, Alarm, Smart Event |
Playback & Backup | |
Local Sync Playback | 3CH 12MP@30fps, 4CH 8MP@30fps, 6CH 5MP@30fps, 8CH 4MP@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps, 16CH D1@30fps |
Decode Capability | 1080P(1920x1080)@480fps |
Remote Sync Playback | YES |
Search Mode | ALL, Timing Video, Motion Detection, Alarm, Tag search, Smart Event, Pictrue, Log |
Playback Functions | Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
Backup Mode | USB Device/Network |
Network | |
Interface | 1xRJ45 10M/100/1000M Adaptive Ethernet Interface |
Incoming Bandwidth | 320Mbps |
Outgoing Bandwidth | 256Mbps |
Network Functions | IPv6, TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p, PPPOE |
Onvif | Profile S, Profile G, Profile T |
Web Browser | Edge, IE8-11, Google Chrome, Firefox, Safari |
CMS Software | Support Windows 7, Windows 8, Windows 10, Windows 11, MAC OS |
Cloud Support | Yes |
Smart Phone | iPhone, iPad, Android, Android Pad |
POE | 16 x Independent 100Mbps POE Network Interfaces (Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 200W, Support Plug and Play, Support network cable extended mode Max. 200M |
WIFI | N/A |
Storage | |
Interface Type | 2 SATA Hard Disk Interface (3.5" SATA) |
Capacity | Up to 10 TB capacity for each HDD |
eSATA | N/A |
General | |
Language UI | Simplified Chinese, Traditional Chinese,English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Janpanese, Ukrainian, Polski, Dutch, Greek, Czech, Arabic |
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
RS485 | N/A |
Power consumption | 100-240VAC, 50/60Hz ≤15W (Without Hard Disk and POE) |
Working Environment | -10℃~50℃, 10%~90% (humidity) |
Dimension(W×D×H) | 380 x 316 x 51mm |
Weight | 3.48≤ kg (without HDD) |
Model | MN403PN |
System | |
Main Processor | ARM Cortex A7 Processor |
Operating System | Embedded LINUX |
Video | |
Input | 9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) |
Output | 1 VGA, 1 HD |
Audio | |
Input | 1 Port RCA, support 9CH IPC audio input |
Output | 1 Port RCA(Linear, 1kΩ), HD output |
Audio Bit Rate | 64kbps |
Audio Compression standard | G711u, G711a, ADPCM_DVI4 |
Intercom | support (two-way) |
Alarm | |
Sensor Input | 4CH |
Output | 1CH |
Motion Detection | 9 Channel, MD Zones: 396 (22 × 18) |
Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
Display | |
HD Output1 | 4K(3840*2160)/2K(2560*1440)/1920*1080/1280*1024/1280*720/1024*768 |
HD Output2 | N/A |
VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Display Split | 9CH/8CH/6CH/4CH/1CH |
Digital Zoom | YES |
OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
Recording | |
Video Compression | H265/H264/H265+/H264+ |
Resolution | 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480) |
Record Rate | PAL :4K@8CHx25fps,5MP@9CH×25fp,4MP@9CHx25fp,3MP@9CH×25fp,1080P@9CH×25fp, 960P@9CH×25fp,720P@9CH×25fp, D1@9CH×25fp NTSC: 4K@8CHx30fps,5MP@9CH×30fp,4MP@9CH×30fp,3MP@9CH×30fp,1080P@9CH×30fp, 960P@9CH×30fp, 720P@9CH×30fp, D1@9CH×30fp |
Record Mode | Manual\Timer\Motion Detection\ Alarm\Smart Event |
Playback & Backup | |
Local Sync Playback | 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps,6CH 960P@30fps, 8CH 720P@30fps,9CH D1@30fps |
Decode Capability | 4CH 1080P(1920x1080)@30fps |
Remote Sync Playback | YES |
Search Mode | ALL, Timing Video, Motion Detection, Alarm,Tag search,Smart Event,Pictrue,Log |
Playback Functions | Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
Backup Mode | USB Device/Network |
Network | |
Interface | 1xRJ45 10M/100MAdaptive Ethernet Interface |
Incoming Bandwidth | 80Mbps |
Outgoing Bandwidth | 80Mbps |
Network Functions | IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE |
Onvif | Profile S, Profile G, Profile T |
Web Browser | Edge,IE8-11, Google Chrome , Firefox ,Safari |
CMS Software | Support Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS |
Cloud Support | Yes |
Smart Phone | iPhone, iPad, Android, Android Pad |
POE | 4 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 50W, Support Plug and Play, Support network cable extended mode Max. 200M |
WIFI | N/A |
Storage | |
Interface Type | 1 SATA Hard Disk Interface (3.5" SATA) |
Capacity | Up to 8TB capacity |
eSATA | N/A |
General | |
Language UI | Simplified Chinese, Traditional Chinese,English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Janpanese,Ukrainian, Polski,Dutch, Greek, Czech, Arabic |
USB Interface | 2 USB 2.0 Interfaces |
RS485 | N/A |
Power consumption | DC48V∕1360mA ≤10W (Without Hard Disk and POE) |
Working Environment | -10℃~50℃, 10%~90%(humidity) |
Dimension(W×D×H) | 260*230*43(mm) |
Weight | 2kg(without HDD) |
Model | MN903PN |
System | |
Main Processor | ARM Cortex A7 Processor |
Operating System | Embedded LINUX |
Video | |
Input | 16CH(3840 × 2160, 2592 × 1944, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, etc) |
Output | 1 VGA, 1 HD |
Audio | |
Input | 1 Port RCA, support 16CH IPC audio input |
Output | 1 Port RCA (Linear, 1kΩ), HD output |
Audio Bit Rate | 64kbps |
Audio Compression standard | G711u, G711a, ADPCM_DVI4 |
Intercom | support (two-way) |
Alarm | |
Sensor Input | 4CH |
Output | 1CH |
Motion Detection | 16Channel, MD Zones: 396 (22 × 18) |
Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
Display | |
HD Output1 | 4K(3840 × 2160), 2K(2560 × 1440), 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 |
HD Output2 | N/A |
VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Display Split | 16CH, 13CH, 10CH, 9CH, 8CH, 6CH, 4CH, 1CH |
Digital Zoom | YES |
OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
Recording | |
Video Compression | H265/H264/H265+/H264+ |
Resolution | 4K(3840 × 2160), 5MP(2592 × 1944), 4MP(2688 × 1520 / 2560 × 1440),3MP(2048 × 1536),1080P(1920 × 1080),960P(1280 × 960),720P(1280 × 720), D1 (720 × 576/720 × 480) |
Record Rate | PAL: 4K@10CH
× 25fps,5MP@16CH
× 25fp, 4MP@16CH
× 25fp, 3MP@16CH
× 25fp, 1080P@16CH
× 25fp, 960P@16CH
× 25fp, 720P@16CH
× 25fp, D1@16CH
× 25fp NTSC: 4K@10CH × 30fps, 5MP@16CH × 30fp, 4MP@16CH × 30fp,3MP@16CH × 30fp, 1080P@16CH × 30fp, 960P@16CH × 30fp, 720P@16CH × 30fp, D1@16CH × 30fp |
Record Mode | Manual, Timer, Motion Detection, Alarm, Smart Event |
Playback & Backup | |
Local Sync Playback | 1CH 4K@30fps, 1CH 5MP@30fps, 2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,16CH D1@30fps |
Decode Capability | 4CH 1080P(1920 × 1080)@30fps |
Remote Sync Playback | YES |
Search Mode | ALL, Timing Video, Motion Detection, Alarm,Tag search, Smart Event, Pictrue, Log |
Playback Functions | Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
Backup Mode | USB Device, Network |
Network | |
Interface | 1xRJ45 10M/100/1000M Adaptive Ethernet Interface |
Incoming Bandwidth | 120Mbps |
Outgoing Bandwidth | 120Mbps |
Network Functions | IPv6,TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPOE |
Onvif | Profile S, Profile G, Profile T |
Web Browser | Edge,IE8-11, Google Chrome, Firefox, Safari |
CMS Software | Support Windows 7, Windows 8, Windows 10, Windows 11, MAC OS |
Cloud Support | Yes |
Smart Phone | iPhone, iPad, Android, Android Pad |
POE | 8 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 96W, Support Plug and Play, Support network cable extended mode Max. 200M |
WIFI | N/A |
Storage | |
Interface Type | 1 SATA Hard Disk Interface (3.5" SATA) |
Capacity | Up to 8TB capacity |
eSATA | N/A |
General | |
Language UI | Simplified Chinese, Traditional Chinese,English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Japanese, Ukrainian, Polski, Dutch, Greek, Czech, Arabic |
USB Interface | 2 USB 2.0 Interfaces |
RS485 | N/A |
Power consumption | DC48V∕2500mA ≤ 10W(Without Hard Disk and POE) |
Working Environment | -10℃~50℃, 10%~90%(humidity) |
Dimension(W×D×H) | 260 × 230 × 43(mm) |
Weight | 2kg(without HDD) |
Model | MN6P3C2H |
System | |
Main Processor | Quad Cortex A53 |
Operating System | Embedded LINUX |
Video | |
Input |
32CH(4000*3000, 3840*2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) |
Output | 1*HD,1*VGA |
Audio | |
Input | 1 Port RCA, support 32CH IPC audio input |
Output | 1 Port RCA(Linear, 1kΩ), HD output |
Audio Bit Rate | 64kbps |
Audio Compression standard | G711U, G711A, AAC |
Intercom | support (two-way) |
Alarm | |
Sensor Input | 4CH |
Output | 1CH |
Motion Detection | 32Channel, MD Zones: 396 (22 × 18) |
Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
Display | |
HD Output1 | 4K(3840*2160), 2K(2560*1440), 1920*1080, 1280*1024, 1280*720, 1024*768 |
HD Output2 | N/A |
VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Display Split | 36CH, 25CH, 17CH, 16CH, 13CH, 10CH, 9CH ,8CH, 6CH, 4CH, 1CH |
Digital Zoom | YES |
OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
Recording | |
Video Compression | H265/H264/H265+/H264+ |
Resolution | 12MP(4000*3000), 8MP(3840×2160), 5MP(2592×1944), 4MP(2688×1520/2560×1440), 3MP(2048×1536), 1080P(1920×1080), 960P(1280x960), 720P(1280×720), D1 (720×576/720×480) |
Record Rate | PAL: 12MP@32CHx25fps, 8MP@32CHx25fps, 5MP@32CH×25fp, 4MP@32CHx25fp, 3MP@32CH×25fp,1080P@32CH×25fp, 960P@32CH×25fp, 720P@32CH×25fp, D1@32CH×25fp NTSC: 12MP@32CHx30fps, 8MP@32CHx30fps, 5MP@32×30fp, 4MP@32CH×30fp, 3MP@32CH×30fp, 1080P@32CH×30fp, 960P@32CH×30fp, 720P@32CH×30fp, D1@32CH×30fp |
Record Mode | Manual, Timer, Motion Detection, Alarm, Smart Event |
Playback & Backup | |
Local Sync Playback | 3CH 12MP@30fps, 4CH 8MP@30fps, 6CH 5MP@30fps, 8CH 4MP@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps, 16CH D1@30fps |
Decode Capability | 1080P(1920x1080)@480fps |
Remote Sync Playback | YES |
Search Mode | ALL, Timing Video, Motion Detection, Alarm, Tag search, Smart Event, Pictrue, Log |
Playback Functions | Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
Backup Mode | USB Device/Network |
Network | |
Interface | 1xRJ45 10M/100/1000M Adaptive Ethernet Interface |
Incoming Bandwidth | 320Mbps |
Outgoing Bandwidth | 256Mbps |
Network Functions | IPv6, TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p, PPPOE |
Onvif | Profile S, Profile G, Profile T |
Web Browser | Edge, IE8-11, Google Chrome, Firefox, Safari |
CMS Software | Support Windows 7, Windows 8, Windows 10, Windows 11, MAC OS |
Cloud Support | Yes |
Smart Phone | iPhone, iPad, Android, Android Pad |
POE | 16 x Independent 100Mbps POE Network Interfaces (Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 200W, Support Plug and Play, Support network cable extended mode Max. 200M |
WIFI | N/A |
Storage | |
Interface Type | 2 SATA Hard Disk Interface (3.5" SATA) |
Capacity | Up to 10 TB capacity for each HDD |
eSATA | N/A |
General | |
Language UI | Simplified Chinese, Traditional Chinese,English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Janpanese, Ukrainian, Polski, Dutch, Greek, Czech, Arabic |
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
RS485 | N/A |
Power consumption | 100-240VAC, 50/60Hz ≤15W (Without Hard Disk and POE) |
Working Environment | -10℃~50℃, 10%~90% (humidity) |
Dimension(W×D×H) | 380 x 316 x 51mm |
Weight | 3.48≤ kg (without HDD) |
